INFRARED THERMOMETERS

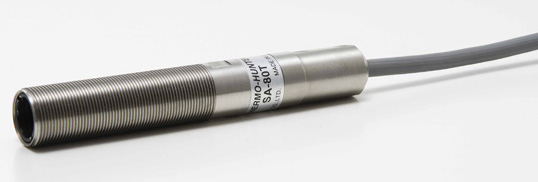

SA Series (SA-80T)

FEATURES

Quick response time

Tough and Heavy-Duty

Waterproofing ability in compliance with IP67
High heat resistance up to 70°C of ambient temperature
High noise resistance and accurate temperature measurement with
stable operation due to SUS body and silicon lens
Analog output of 4-20mA highly resistant to noise

Compact

Wide-range & long-focus setting

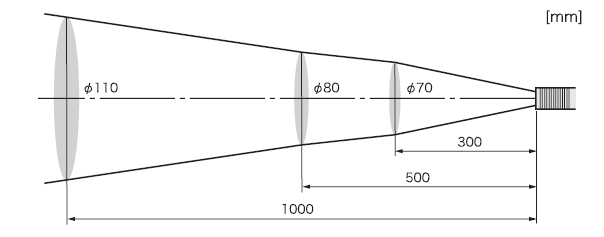

FIELD OF VIEW

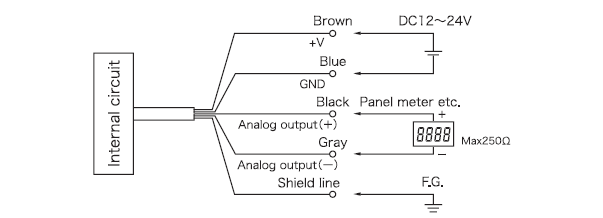

CONNECTION DIAGRAM

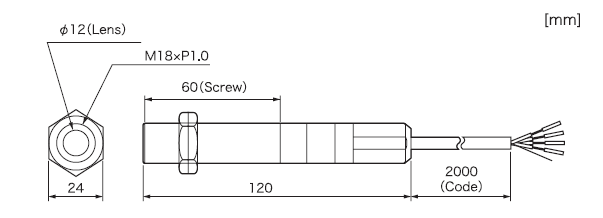

OUTSIDE DIMENSION

SPECIFICATIONS

Models	SA-80T-2A	SA-80T-4A
Temperature Range	0 ~ 200°C	0 ~ 400°C
Area Size	ø80 / 500mm
Optics	Silicon Lens
Spectral Response	Thermopile / 8 ~ 14µm
Response Speed	100ms / 90%
Accuracy	0 ~ 200°C: ±2°C 201 ~ 400°C: ±1%
Repeatability	±1°C of reading value
Analog Output	4 ~ 20mA
Emissivity ratio (e) Adjustment	0.95
Power Supply	DC12 ~ 24V±10% / MAX 70mA
Ambient Temperature	0 ~ 70°
Environmental Humidity	35 ~ 85%Rh (without dew condensation)
Storage Temperature	-20 ~ 70°
Vibration Resistance	10 ~ 55Hz, amplitude 1.5mm, two hours each in the direction of X, Y, Z
Water Resistance	IP67
Materials	SUS / AI
Weight	180g

Accessories : M18 Nutx 2pcs. Optional : Blackbody tape
*Specification may change without prior notice.
