PROCESS CONTROLLERS

DIGITAL PID CONTROLLERS

SRS10A Series

A controller with a space-saving depth of 62 x 65 mm compared to existing products with a depth of 100 mm. 3-point SV setting; 3 types of PID value can be set.Control output of ON/OFF hysteresis mode is selectable. Heating/cooling 2-output control (optional) can be selected.4-pattern, 8-step program (optional) can be selected. 3-point maximum event output (optional) can be selected. Analog output (optional) can be selected. 2-point CT input (optional) can be selected. 4-point external control input maximum (optional), can be selected. Communication function (optional), master and slave mode can be used.

Since this is filled with an insulator (magnesium oxide), compared to the general type, it has excellent resistance to tremors and collision impact. It is also characterized by a speedy response to temperature change.

SRS11A/12A/13A/14A Series

Multi-input and multi-range performance and 2-output heating and cooling control available

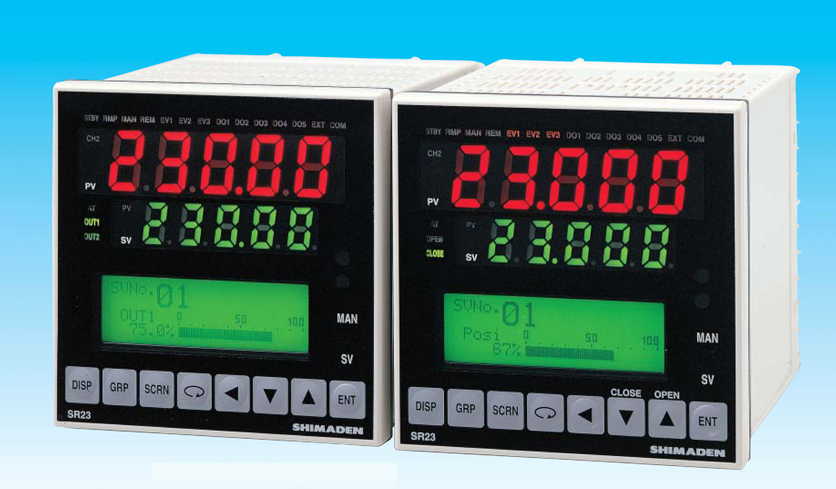

SR23 Series Digital Controller

• 2-channel controller
• Independent 2-loop/internal cascade/ 2-input operation control
• High accuracy
• High sampling cycle 0.1 sec
• Auto-tuning PID/ Expert PID/ Self-Tuning PID
• Multi-Setting of 10 set values
• Independent universal-input

SR80 Series

Digital multi-function PID controller

• High accuracy (0.25% f.s.)
• Large 20mm bright display <SR83>
• 2-outputs for heating and cooling control
• Dust and splash proof IP66 front panel
• RS232C/RS85 and CC link communication
• Wide selection of optional functions
• CE approved

SR90 Series(SR91,92,93,94)

• Digital multi-function PID controller
• Multi-input and multi-range performance
• Large 20mm bright display <SR93>
• 2-outputs for heating and cooling control
• RS232C or RS485 Interface
• Dust and splash proof IP66 front panel
• A wide selection of optional functions
• CE approved

MR13 Series

Three channel digital PID controller

• 3-channel input, 3-channel setting and simultaneous 3-channel display
• Accuracy: 0.3% f.s. 1 digit
• Follow up type PV input and SV setting function possible
• RS232C/RS485 Interface
• Programmable 1 pattern with 9-step functions.
• Remote/local DI input function
• CE approved

PROCESS INDICATORS

SD16A Series

Three channel digital PID controller

• DIN 96 X 48mm process controller with 20mm high large digits,
  multi-input, multi-range, analog output, communication interface and a wide range of optional features. A six point selector switch KR16 available for combined use.
• Selector switch

SD 24 & KR16

• High Accuracy ±0.1% FS+1 digit
• 1/1000ºC Resolution Indication Possible(Pt input 0.000 – 30.000ºC)
• 3 Display Modes (Peak Hold, Bottom Hold, Display Hold)
• External Control Input (2 points) as a Standard Feature
• C contact (2 points) or a contact (4 points) can be selected for alarm output.
• Analog Output Hold Function (Hold Display Value Output)
• Communication Function RS-485/RS-232C
  (Shimaden Standard Protcol/MODBUS)
• Linear Approximation Operation Function (Voltage/Current Input only)
• Selector switch

PROGRAMMABLE PID CONTROLLERS

FP93 Series

Digital programmable PID controller

• Full multi-input and multi-range performance
• User selectable Thermocouple, RTD, V, mV and Current
  inputs
• Large 20mm bright display
• 40-step programs function
• RS232C or RS485 Interface available
• Dust and splash proof front panel equivalent to
  IP66
• CE approved

SERVO CONTROLLER

EM70 Series

Digital Servo Controller

• High visibility of Control Motor opening display
• Zero/Span adjustment of opening
• RS232C or RS485 Interface available
• Dust and splash proof front panel equivalent to
  IP66
• A wide selection of optional functions
• CE approved
